Finished and Delivered! (Raleigh Super Course Part X)

So when Thursday arrived I still had the brakes to do.  I had run the cables and housing but hadn't hooked it all up.

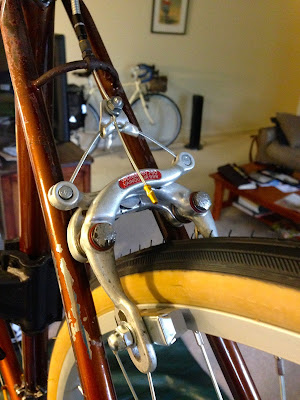

Front done
One thing I like to do when working on Center-Pull brakes is to clamp down the brake arms so the pads are touching the rim - taking the slack out of the system and then pulling the cable through and adusting the bolt on the straddle wire hanger.  Unfortunately the quick clamp I inherited from my dad has about a foot and half of over hang so it doesn't stay clamped very well, I need to get something better suited for bike work.  I did get the front snugged up but an extra set of hands would be nice for this job.

Rear done
One thing I enjoy about using colored cable housing is that even the cable tips can add a splash of color.
golden tipped cable

So Thursday night finished with the bike complete in the stand and just in need of a test ride on Friday.

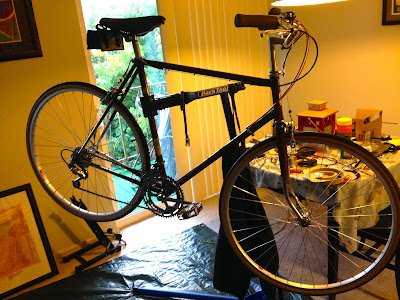

bike stand work complete
While I was at work on Friday I got to thinking that an Upright Sophisticated Gentlemen's City bike needed a kickstand and I had one rattling around in the parts bin so I took care of that before the test ride.  I like to protect the tubes of the chain stays when I do this.



I keep some old tubes around for this job as they are really good for protecting frames, handlebars etc.

I cut a couple rubber strips to put around the tubes where I am mounting the kickstand, you can cut them long enough to circle the tubes but since I am really only looking to protect the top and bottom I just cut enough to form a "C" on the tube.  I then use a little electrical tape to keep the rubber in place while I mount the kick stand.


When  I first mounted the kickstand I had the mounting bolt dead center between the tubes but that ended interfering with the movement of the crank arm so i had to adjust it slightly.

Close tolerance
And with that it was ready to go on it test ride.  When I am testing out I bike I look for the following:

  • Is there play in any of the main bearings; wheel hubs, bottom bracket/cranks, headset/stem
  • Does the saddle slip is it aligned straight?
  • are the handle bars on straight
  • do the brakes work -crisp or mushy?
  • does the shifting work - no over or under shifts
  • An untoward sounds?
I came back with a few things to tweak and then it was ready for some beauty shots.

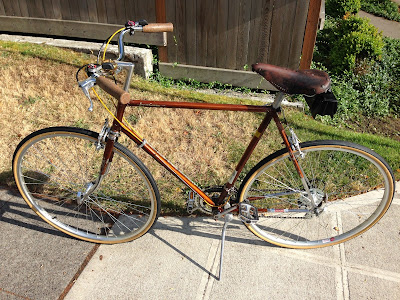

Non-drive side

Drive side
Just a little ways from where we started with this bike.  I was up early on Saturday to load the bike up and head to Portland.

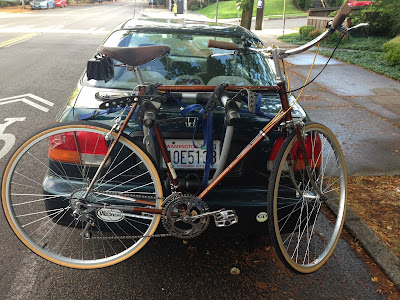

are we going somewhere?
The bike spent a little time as a gallery piece - I didn't mind.

I'm home!

And then it was off for the shake down cruise and lunch.

Reunited
The Sophisticated Gentleman on his upright city bike.



Hanging with the Handsome Devil.


And to cap the evening off Joe delivered on his promise of beers and dinner (Bangers for me) at the local English style pub,  hmmm Imperial pints.


I have certainly enjoyed refurbishing old ten speeds in their drop bar form but I might have to do more of these city bike conversions.  We'll see.

Until next time... Ride.Smile.Repeat.
